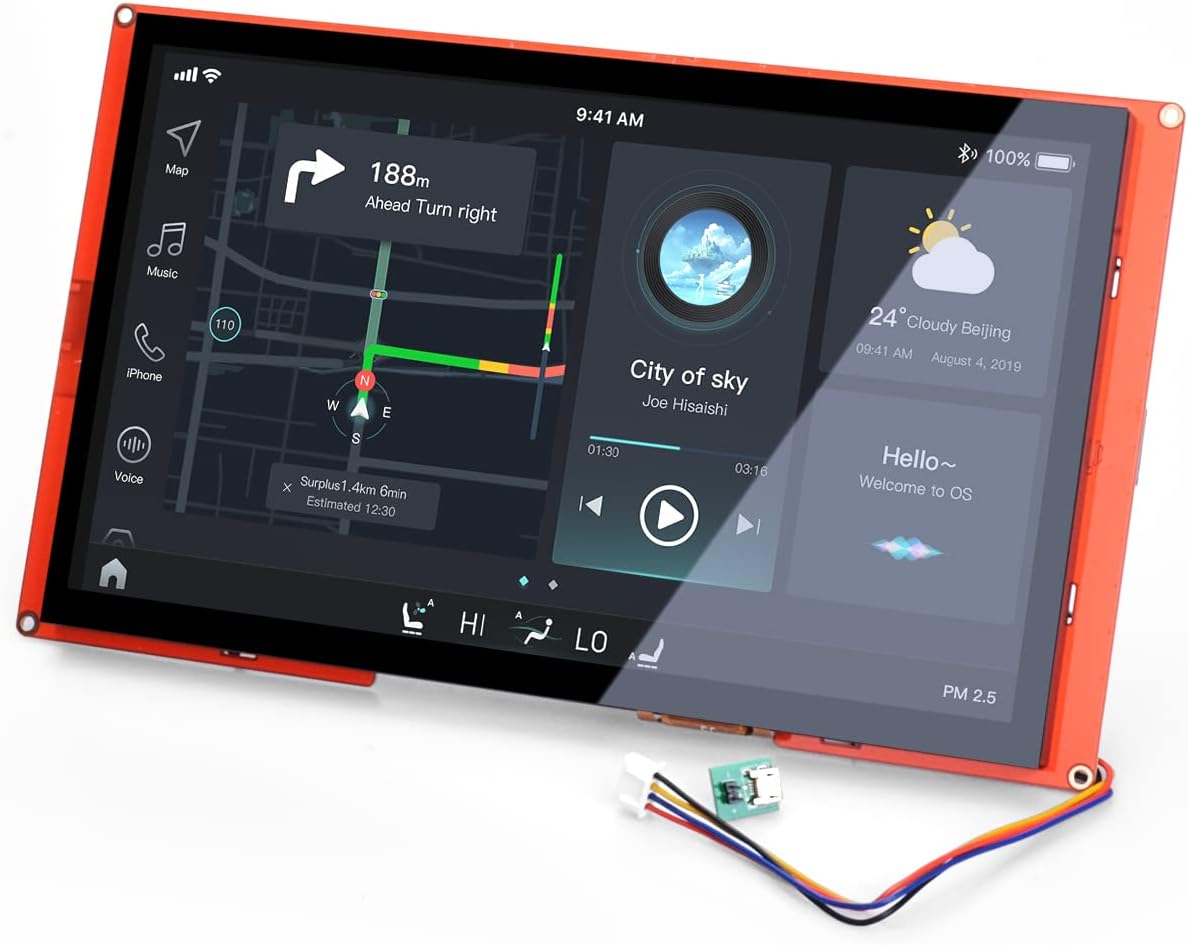

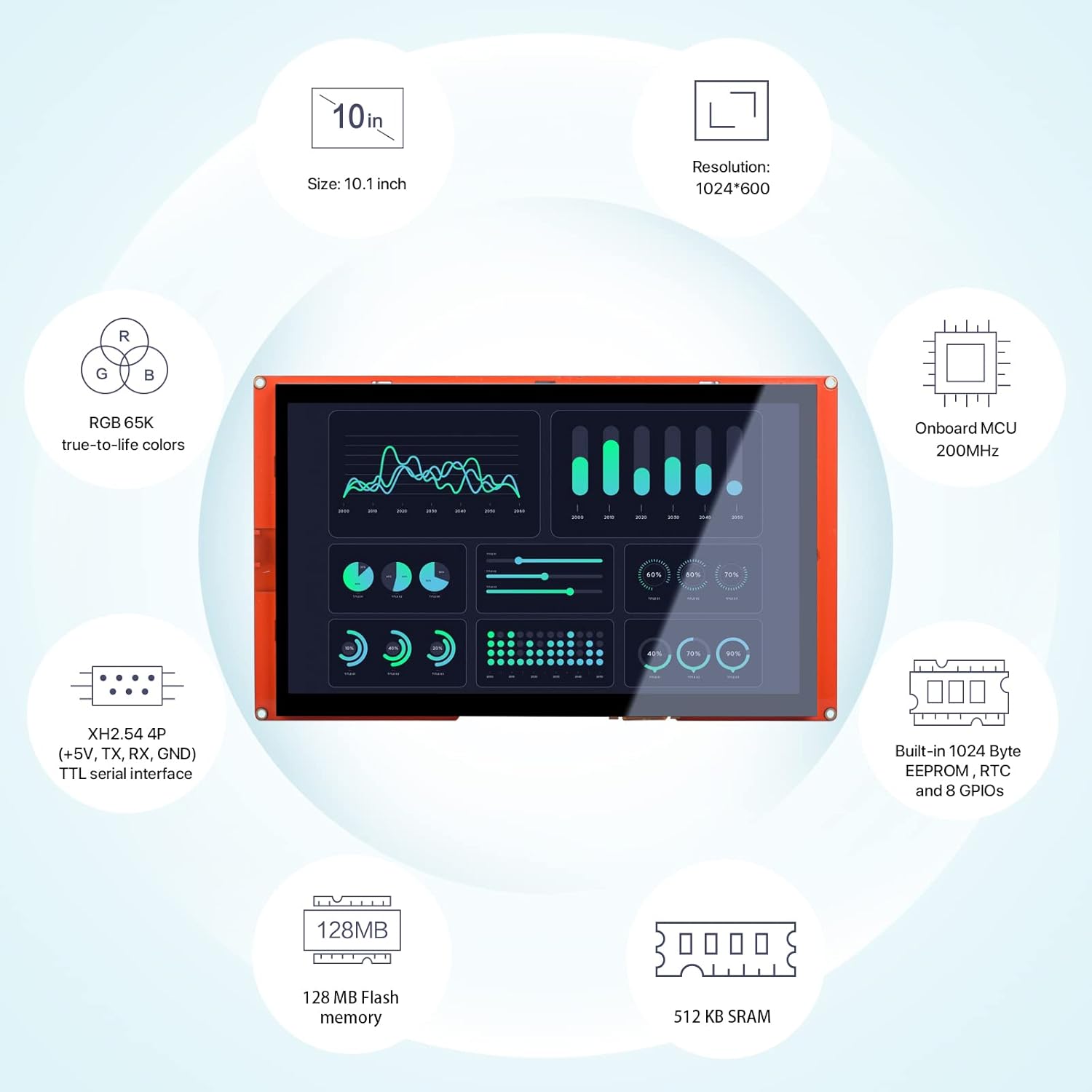

Nextion Intelligent NX1060P101-011R-I 10.1″ HMI Resistive Touch Display
AED585.00
Brand: NEXTION
Model Name: NX1060P101
Ram Memory Installed Size: 512 KB
Memory Storage Capacity: 128 MB
CPU Speed: 200 MHz
Description
Nextion Models
| Nextion Type | Intelligent Series |
| Nextion Models | NX1060P101-011R-I (10.1 inch IPS resistive touchscreen without enclosure) |
Specifications
| Data | Description | |
| Color | IPS 65K 65536 colors | 16 bit 565, 5R-6G-5B |
| Layout size | 258mm(L)×152mm(W)×11.5mm(H) | |
| Visual Area (V.A.) | 235.00mm(L)×143.00mm(W) | |
| Active Area (A.A.) | 222.72mm(L)×125.28mm(W) | |
| Resolution | 1024×600 pixel | Also can be set as 600×1024 |
| Touch type | Resistive | |
| Touches | > 1 million | |
| Backlight | LED | |
| Backlight lifetime (Average) | >30,000 Hours | |
| Brightness | Â 300nit | 0% to 100%, the interval of adjustment is 1% |
| Weight | 505g |
Electronic Characteristics
| Test Conditions | Min | Typical | Max | Unit | |
| Operating Voltage | 4.75 | 5 | 6.5 | V | |
| Operating Current | VCC=+5V, Brightness is 100% | – | 800 | – | mA |
| SLEEP Mode | – | 170 | – | mA | |
| Power supply recommend：5V, 2.0A, DC | |||||
Working Environment & Reliability Parameter
| Test Conditions | Min | Typical | Max | Unit | |
| Working Temperature | 5V, Humidity 60% | -20 | 25 | 70 | °C |
| Storage Temperature | -30 | 25 | 85 | °C | |
| Working Humidity | 25°C | 10% | 60% | 90% | RH |
Interfaces Performance
| Test Conditions | Min | Typical | Max | Unit | |
| Serial Port Baudrate | Standard | 2400 | 9600 | 921600 | bps |
| Output High Voltage (TXD) | IOH=1mA | 3.0 | 5.0 | Vin | V |
| Output Low Voltage(TXD) | IOL=-1mA | 0.1 | 0.2 | V | |
| Input High Voltage(RXD) | 3.0 | 5.0 | Vin | V | |
| Input Low Voltage(RXD) | -0.7 | 0.0 | 1.3 | V | |
| Serial Port Mode | 3.3V/5.0V TTL | ||||
| Serial Port | 4Pin_2.54mm | ||||
| USB interface | NO | ||||
| SD card socket | Yes (FAT32 format), support maximum 32G Micro SD Card * presence of *.tft file on microSD: socket is exclusive to upgrade Nextion firmware/HMI design * Intelligent Series only: see Instruction Set / Editor Guide for microSD card runtime usage | ||||
| Extended IO | 8 Digital extended GPIO | ||||
| IO0-IO7 support input, output and component binding event * IO pin / ports are not exclusive, limit current draw to 1mA recommended | |||||
| IO6-IO7 support PWM | |||||
| RTC | built-in RTC support (Battery type: CR1220) | ||||
Memory Features
| Memory Type | Test Conditions | Min | Typical | Max | Unit |
| FLASH Memory | Store fonts and images | 120 | MB | ||
| User Storage | EEPROM | 1024 | BYTE | ||
| RAM Memory | Store variables | 512 | KB | ||
| Instruction Buffer | Instruction Buffer | 4096 | BYTE |
Audio Features
| Speaker | Parameter | Min | Typical | Max | Unit |
| Power | – | 0.5 | – | 1.5 | W |
| Audio Connector Type：1.25T-2-2A (1.25mm pitch 2-pin housing) | |||||
Product Dimensions
NX1060P101-011R-I_Dimension
