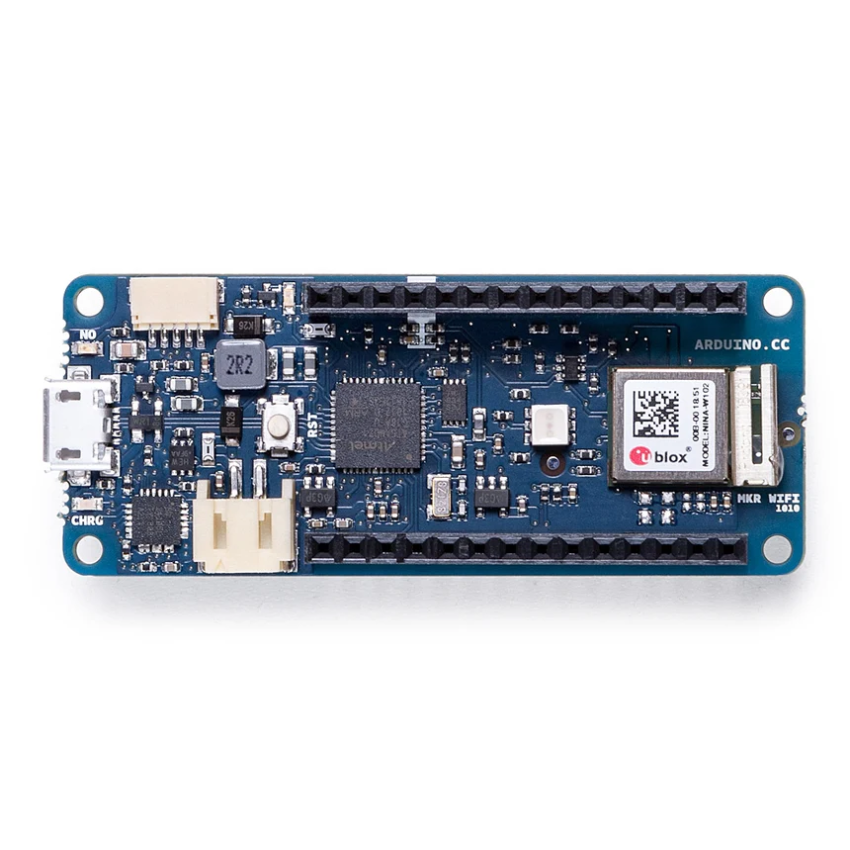

ABX00023 Arduino MKR WIFI 1010 BOARD
AED195.00
-
Tech Specs
- Microcontroller: SAMD21 Cortex®-M0+ 32bit low power ARM® MCU
- Radio module: u-blox NINA-W102
- Board Power Supply (USB/VIN): 5V
- Circuit Operating Voltage: 3.3V
- Digital I/O Pins: 8
- USB: Full-Speed USB Device and Embedded Host
- Length: 61.5 mm
- Width: 25 mm
- Weight: 32 grams
Description
The Arduino MKR WiFi 1010 is the easiest point of entry for IoT and pico-network applications. Whether you are building a sensor network connected to your office or home router or creating a Bluetooth® Low Energy device to send data to a cellphone, this board is your one-stop solution for many basic IoT application scenarios.
-
Bluetooth® and Bluetooth® Low Energy
- The communications chipset on the MKR WiFi 1010 can function as both a Bluetooth® Low Energy and Bluetooth® client or host device. This dual capability is rare in microcontroller platforms. The ArduinoBLE library provides examples to create either a Bluetooth® central or peripheral device with ease.
-
Battery Power
- The MKR WiFi 1010 can be powered via its USB port (5V) or through a Li-Po battery. It includes a Li-Po charging circuit that allows the board to run on battery power while simultaneously charging the battery from an external 5V source. The board automatically switches between power sources.
-
