Nextion BASIC NX4827T043 – 4.3” TFT LCD ManMachine Interface HMI Kernel Touch Display

HMI Displays are becoming increasingly popular as a result of their intelligence, and NEXTION is one of the major players in HMI Display Production, which has introduced a range of different kinds of Displays at a very affordable cost.

NEXTION offers an advanced level of displays at an affordable cost than any other competitor brand in the market, making them ideal for the one who wants to start some Projects through touch displays. This type of Display has inbuilt audio, video, and animation play functions which makes it smart.

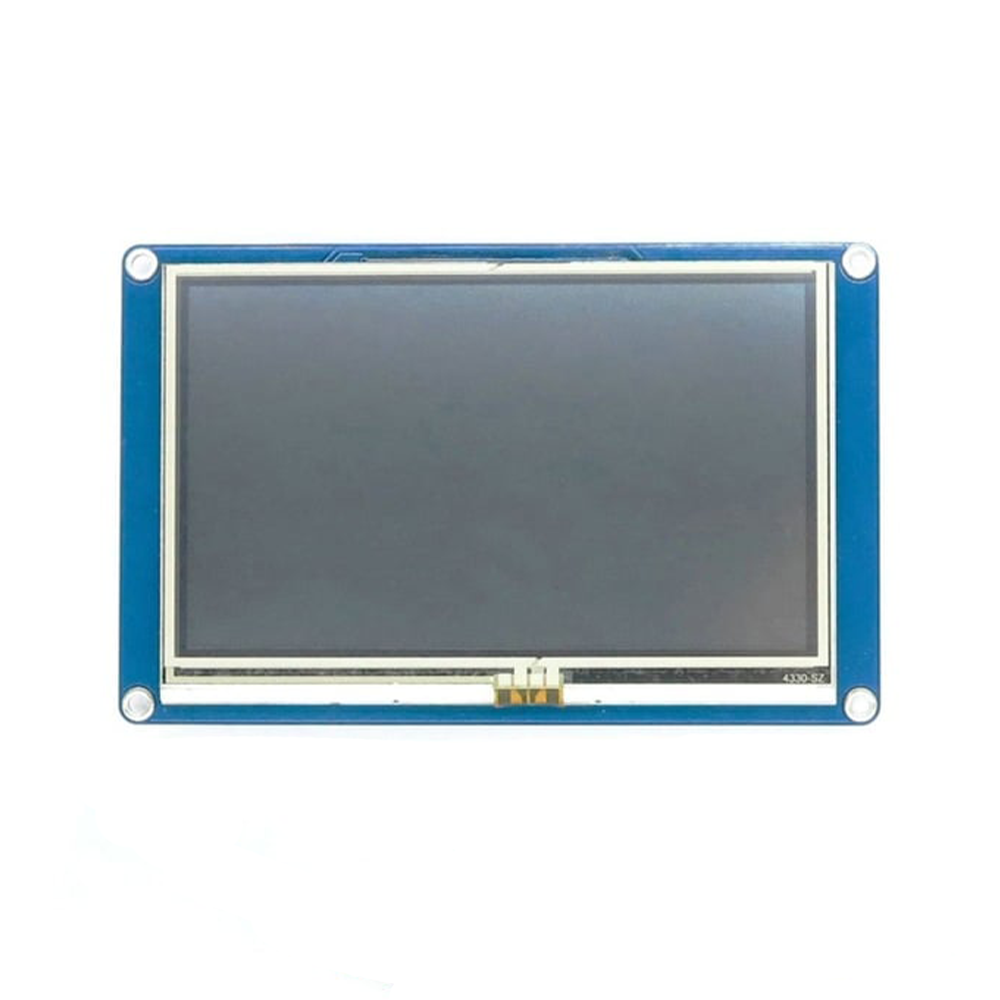

Nextion NX4827T043 – 4.3” TFT LCD ManMachine Interface HMI Kernel Intelligent Touch Display is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the Internet of Things (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tubes.

The operating Voltage of the Display is lies between 4.75 to 7 V also this TFT Screen Intelligent Display Module with integrated 4-wire Resistive Touch Panel For Arduino DIY NX4827T0430 480 x 272 is a powerful 4.3” HMI, which is a member of the Nextion family. The following are some of the features: a 4.3 “TFT 480 x 272 resistive touchscreen, 16M Flash, 2KByte RAM, 65K colors.

Features:

1. Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2.
2. 480 x 272 Resolution
3. RGB 65K true to life colors
4. TFT Screen with integrated 4-wire Resistive Touch Panel
5. Easy 4 pin interface to any TTL Serial Host
6. 16M Flash memory for User Application Code and Data
7. Onboard micro-SD card for firmware upgrade
8. Visual Area:95.04mm(L)×53.86mm(W)
9. Adjustable Brightness:0~230 nit, the interval of adjustment is 1%
10. 5V250mA power consumption
